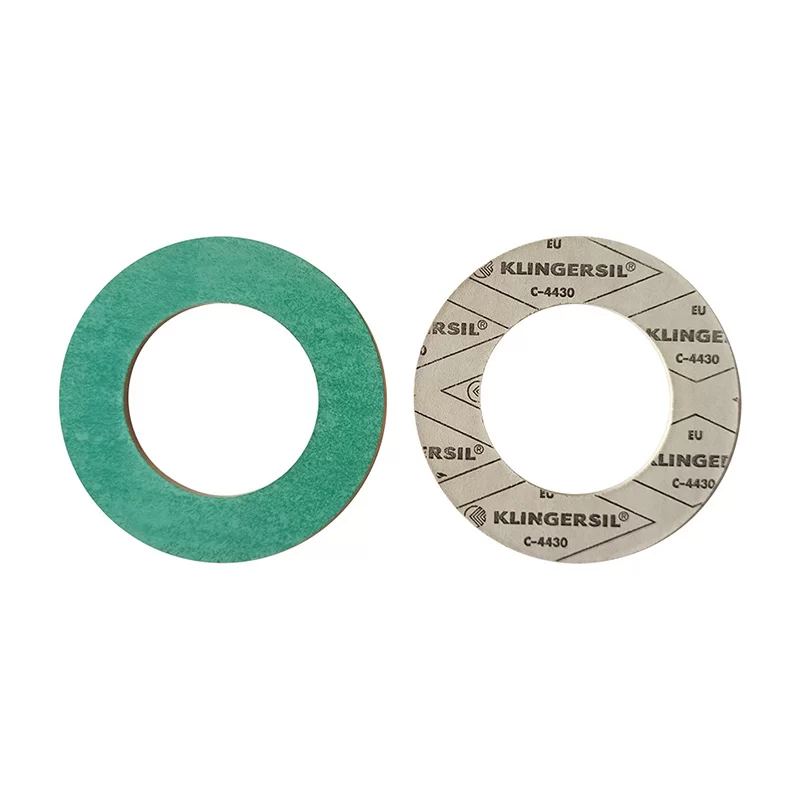

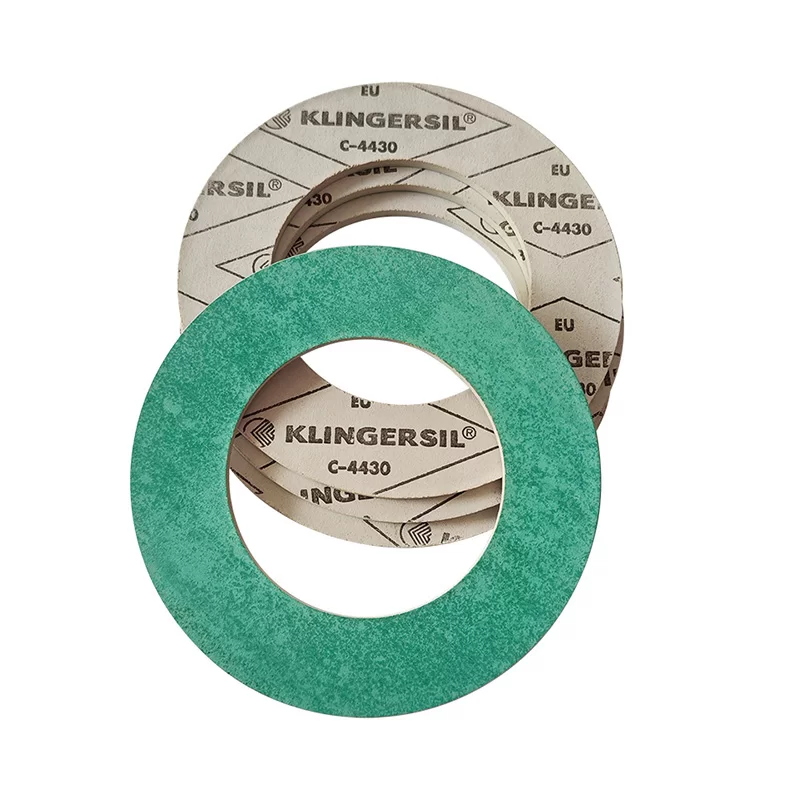

Non-Asbestos Gasket (Klingersil C-4430)
Applications
Resistant to water and steam at higher temperatures as well as to oils, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.
Product Description
Features
KLINGERSIL C-4430 offers outstanding stress retention and resistance to hot water and steam.
Specification
| Composition | Optimum combination of synthetic fibers, bonded with NBR. |
| Pressure | 0 to 100 bar |
| Temperature | -200℃ to 400℃ |
| Sheet dimensions | Sizes: 1000 x 1500 mm, 2000 x 1500 mm Thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm |
| Approvals | Oxygen-tested DIN-DVGW DVGW H2-ready (ZP 5123) DIN 16421 (W 270) DIN 30653 (VP 401) KTW-BWGL WRAS approval TA-Luft (Clean air) DNV approval SVGW approval Fire-Safe acc. to DIN EN ISO 10497 Fire-Safe acc. to ISO 19921 |
