Guangzhou Huite Sealing Machinery Co., Ltd.

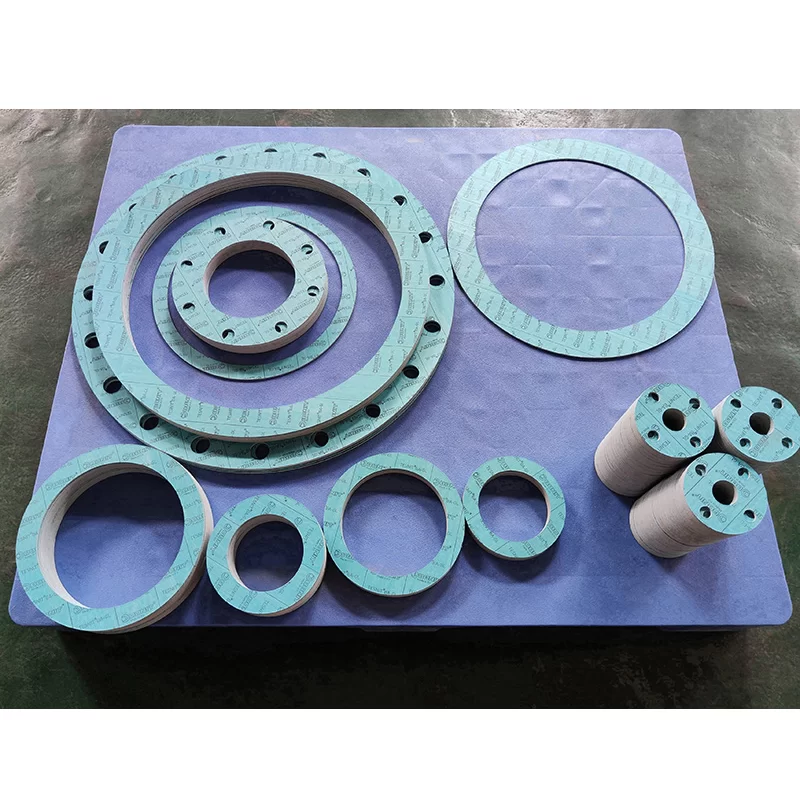

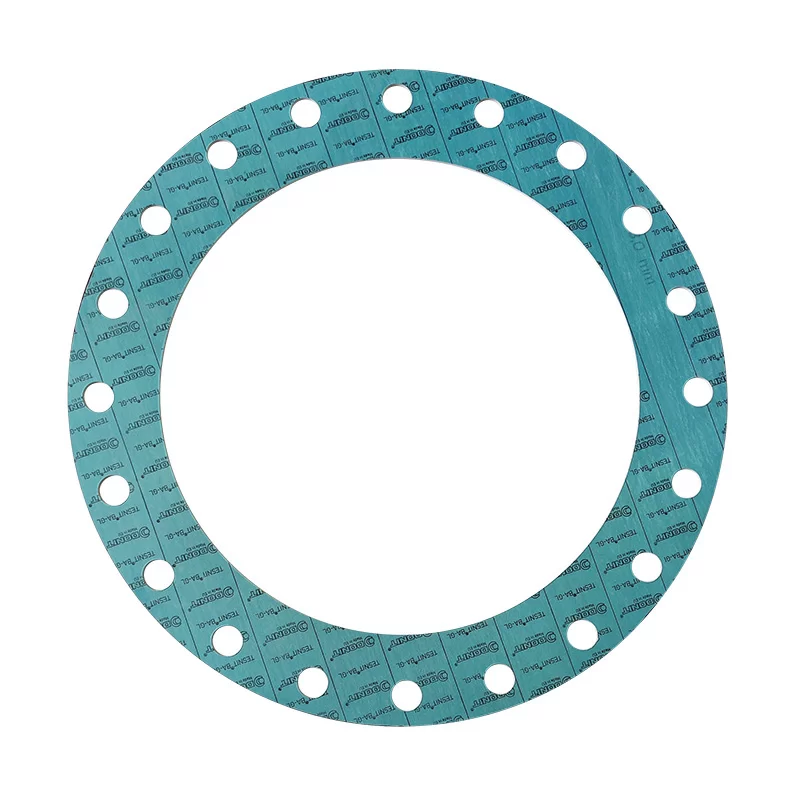

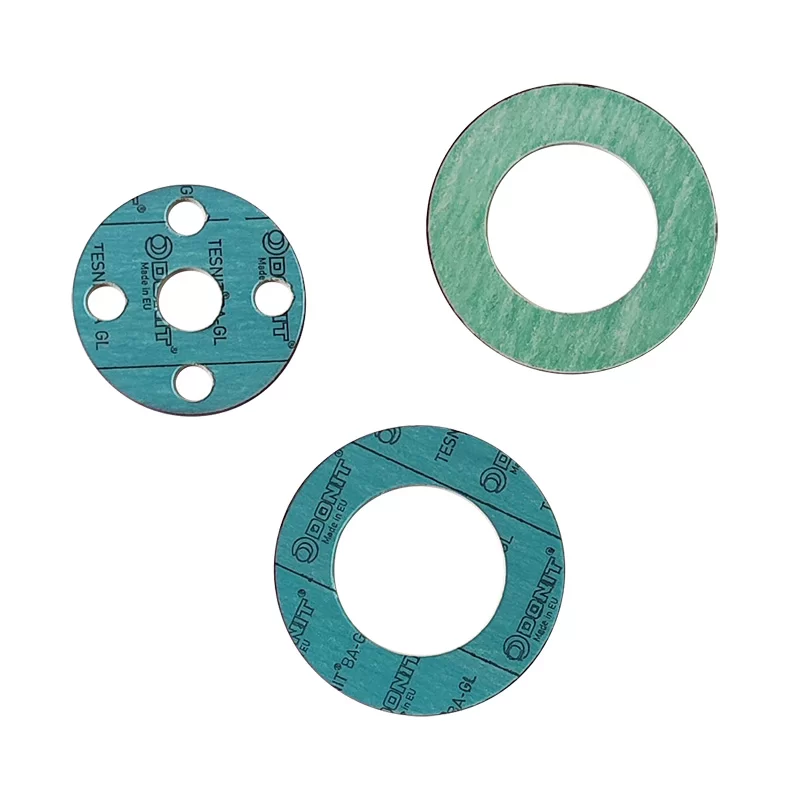

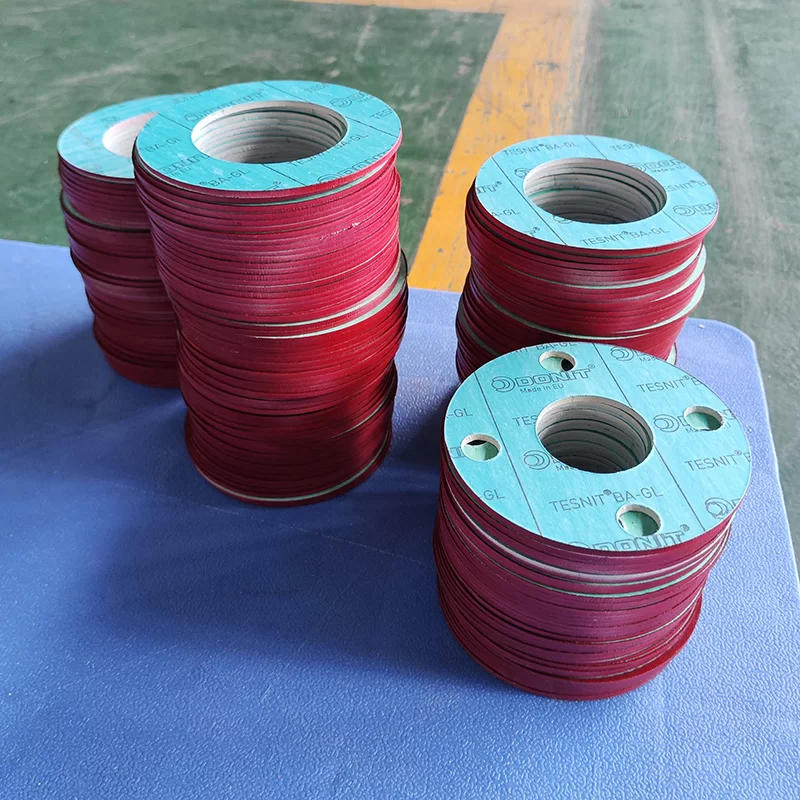

Non-Asbestos Gasket (Donit Tesnit Ba-Gl)
Applications
Compressors & Pumps, Food Industry, Gas Supply, Heating Systems, High-Temperature App., Petrochemical Industry, Potable Water Supply, Power Plant, Refrigeration & Cooling, Shipbuilding, Steam Supply, Valves.It is particularly suited for gas and steam supplies, heating systems, pumps and compressors.
Product Description
Features
TESNIT® BA-GL combines excellent thermal and chemical resistance with outstanding mechanical properties, especially bolt torque retention.
Specification
| Composition | Aramid fibers, Glass fibers, Inorganic fillers, NBR binder |
| Pressure | For Aggressive gasses: 0 to 120 bar For Steam or gasses: 0 to 140 bar For Liquids: 0 to 140 bar |
| Temperature | -50℃ to 400℃ |
| Sheet dimensions | Size (mm): 1500 x 1500 | 4500 x 1500 Thickness (mm): 0.5 | 1.0 | 1.5 | 2.0 | 3.0 |
| Approvals | ABS API 607 BAM (oxygen) BS 7531 Grade X DNV DVGW DIN 30653 HTB (1bar) DVGW DIN 3535-6 EC 1935/2004 EN 16421 (W270) ISO 10497, WRAS |
