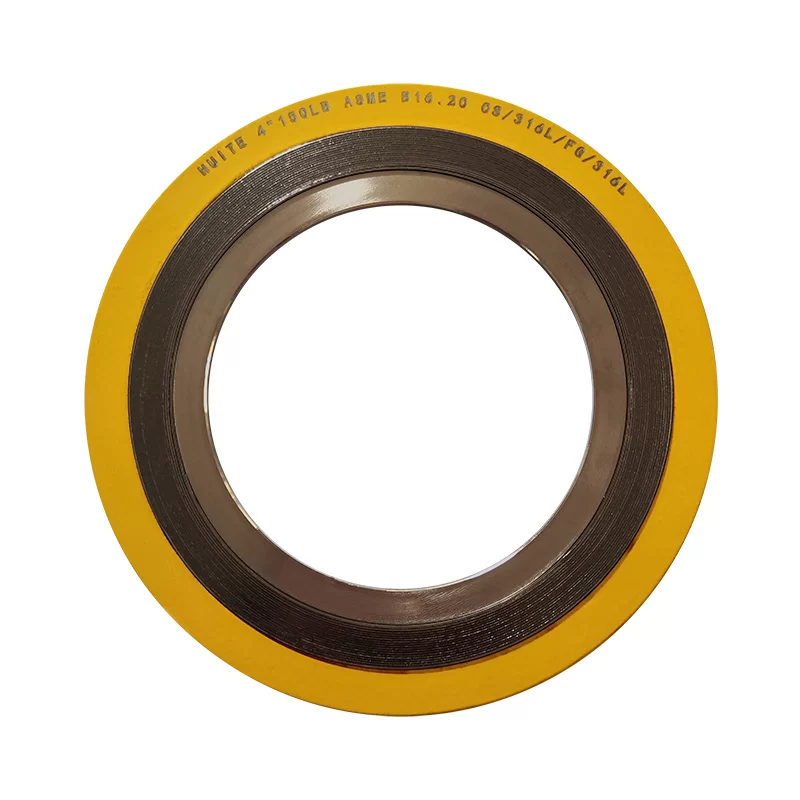

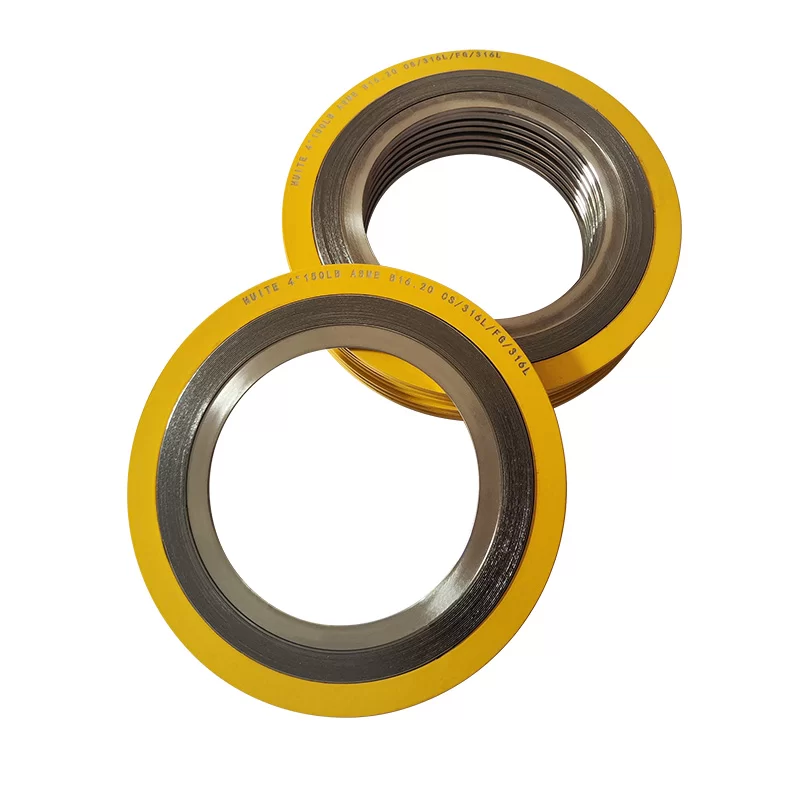

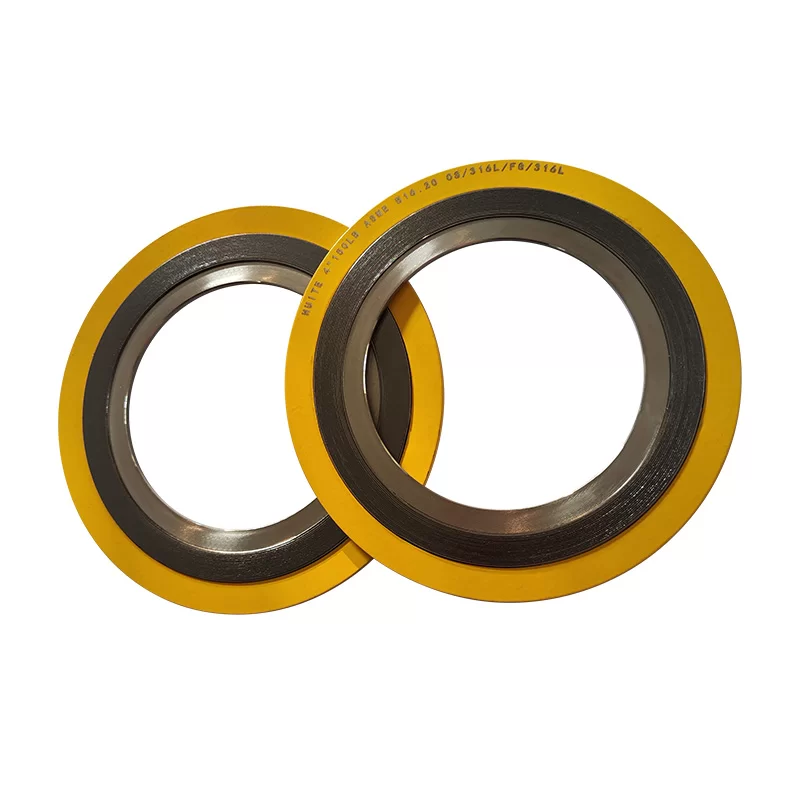

Flexible Graphite Spiral Wound Gasket (Cs Outer Ring)
Applications
For Flange joints, manhole and handhole covers, tube covers, boilers, heat exchangers, pressure vessels, pumps, compressors and valves, etc.
Especially for high-temperature and high-pressure steam, and for low-temperature LNG.
Product Description
Spiral wound gaskets are special semi-metallic gaskets of great strength and resilience.
Manufactured by spiral winding V-shaped metal strip and strip of flexible graphite filler.
And can be reinforced with an outer centering ring and/or inner retaining ring.
It has excellent sealing performance even under severe operating conditions such as high temperature and high pressure, low temperature, thermal cycle, and temperature cycle.
Specification
| Filler | Flexible graphite |
| Winding (Hoop) | 316L or 304 |
| Inner ring | 316L or 304 |
| Outer ring | Carbon steel |
| Thickness | 4.5mm |
| Temperature | -240°C to 450°C -400℉ to 842℉ |
| Pressure | 420 Bars |
