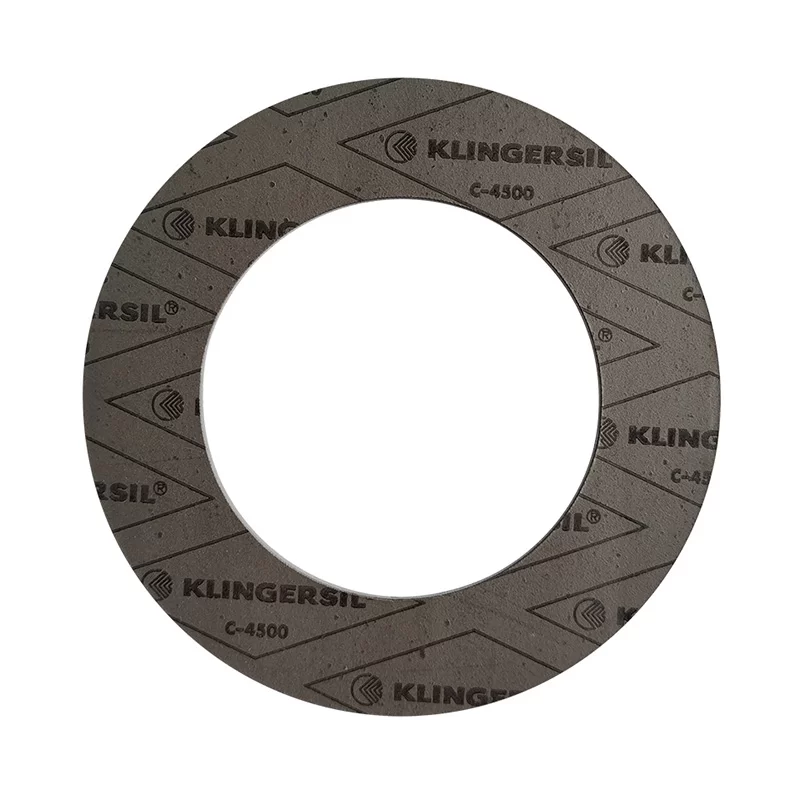

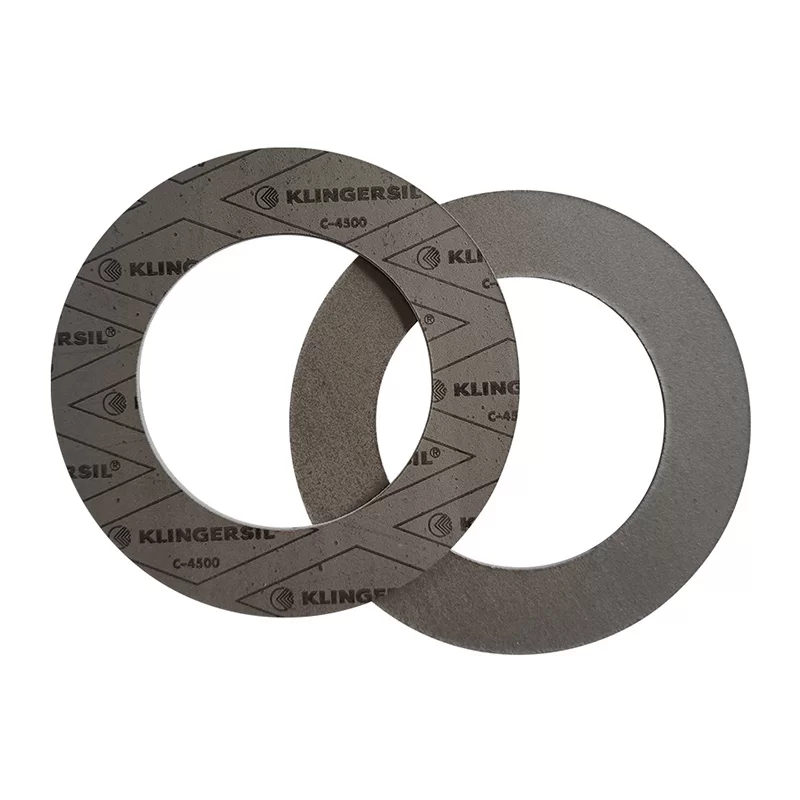

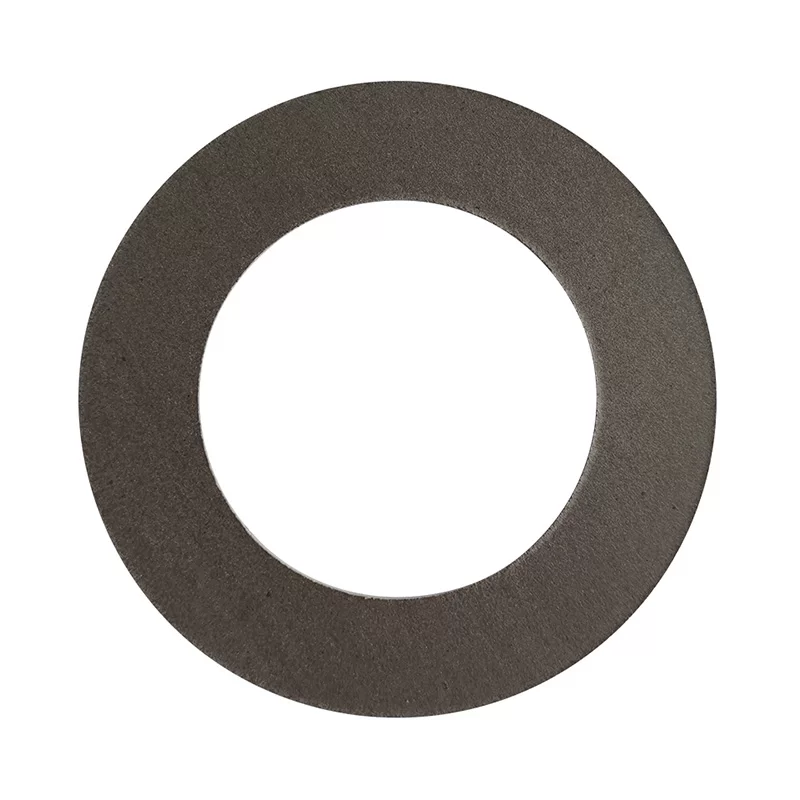

Klingersil C-4500 Gasket
Applications
General industry / Chemical / Oil & Gas / Energy / Infrastructure / Pulp & Paper / Marine / Automotive / Food & Beverage
Product Description
Features
KLINGERSIL C-4500, combining carbon fibers and special heat-resistant additives with an NBR bonding, this superior-performance gasket material has been designed specifically for the chemical industry.
Higher temperatures, alkaline media and superheated steam are typical application scenarios where operators also profit from its resistance against oils, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.
Benefits
Suitable for high temperature alkaline media.Suitable for superheated steam.
Specification
| Composition | Carbon fibers and special heat-resistant additives, bonded with NBR. |
| Pressure | 0 to 100 bar |
| Temperature | -200℃ to 400℃ |
| Sheet dimensions | Sizes: 1000 x 1500 mm, 2000 x 1500 mm Thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm |
| Approvals | Oxygen-tested DIN-DVGW DIN 16421 (W 270) ÖVGW Reg.No. G 2.143 TA-Luft (Clean air) DNV approval Fire-Safe acc. to DIN EN ISO 10497 |
