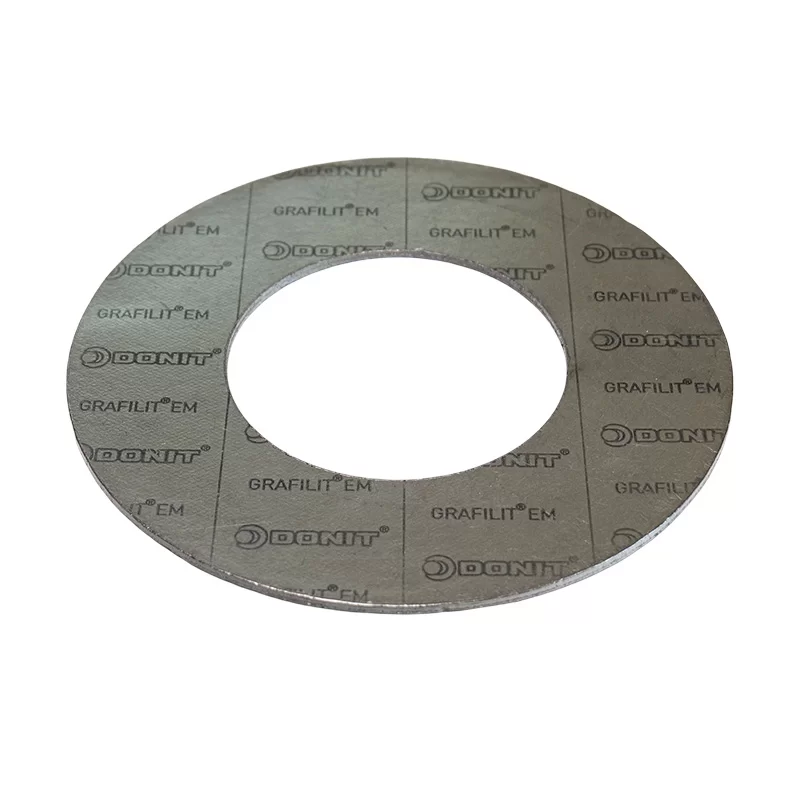

Reinforced Graphite Gasket (Donit Grafilit Em)
Applications
Shipbuilding, Steam Supply, Power Plant, Gas Supply, Refrigeration & Cooling, Chemical Industry, Heating Systems, Petrochemical Industry, High-Temperature App., Paper & Celluloseindustries, Compressors & Pumps, Automotive & Enginebuilding Industries, Valves.It is particularly suitable for high-temperature applications in the petrochemical industry and steam supply."
Product Description
Features
GRAFILIT® EM is an expanded graphite-based gasket material endowed with expanded stainless steel reinforcement for high operation pressures, including cycling loading. Uniform surface pressure distribution provides excellent thermomechanical properties and sealing characteristics, and increases blowout resistance.
Specification
| Composition | Expanded natural graphite (>99% purity), expanded stainless steel insert (AISI 316L; 0.15 mm). |
| Pressure | 0 to 200 bar |
| Temperature | -200℃ to 600℃ |
| Sheet dimensions | Size (mm): 1000 x 1000 | 1500 x 1500 Thickness (mm): 1.0 | 1.5 | 2.0 | 3.0 |
| Approvals | DVGW DIN 3535-6 ISO 10497 (API 607) TA-Luft (VDI 2440) DNV GL ABS |
